FHB24 240L + 660L BIN TIPPER (500KG)
INCL GST
$13,585.00
Made in: Australia
Compatible Bins: 80L, 120L, 240L or 660L wheelie bins
Operation: Hydraulic power pack, remotely controlled
Product Code: FHB24
Unit Weight: 285kg
Working Load: 500kg
Finish: Enamel Paint Finish
Rotation: 120°
Fork Pocket Size: 140mm x 85mm
Fork Pocket Centres: 380mm
|
FORKLIFT BIN TIPPER ATTACHMENTS (EXCLUDES FREIGHT) |
|
|---|---|
|
NWB-T1 (500kg) OVER CENTRE TIPPING MECHANISM For emptying 1 x 240 Litre wheelie bin |
$1,556.50 Incl GST $1,415 Excl GST |
|
NWB-T2 (500kg) OVER CENTRE TIPPING MECHANISM For emptying 2 x 240 Litre wheelie bins |
$2,534.00 Incl GST $2,140 Excl GST |
|
FWE24 (500kg) PULL CORD TIPING ACTION For emptying 1 x 240 Litre wheelie bin |
$1,232.00 Incl GST $1,120 Excl GST |
|
FWB24 (500kg) FORKLIFT WITH ROTATOR FITTED TIPPING For emptying 2 x 240 Litre wheelie bins |
$1,353.00 Incl GST $1,230 Excl GST |
|
FWC66 (500kg) PULL CORD TIPING ACTION or emptying 1 x 660 Litre or 1 x 1100L bin |
$2,986.50 Incl GST $2,715 Excl GST |
|
FHB24 (500kg) HYDRAULIC POWER + REMOTE CONTROL For emptying 2 x 240 Litre bins or 1 x 660L bin |
$13,585.00 Incl GST $12,350 Excl GST |
|
FCA66 For compacting 660L skip bins |
$2,718.00 Incl GST $1,980 Excl GST |
|
FCA110 For compacting 1100L skip bins |
$2,508.00 Incl GST $2,208 Excl GST |
► Click to expand Product Features

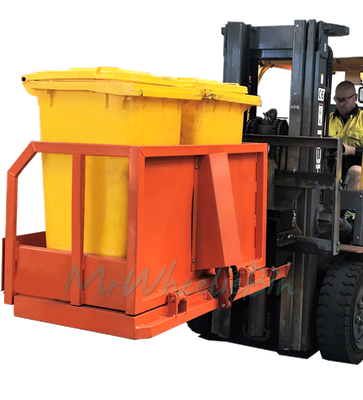

The FHB24 Sideways Wheelie Bin Tipper with fitted Hydraulic Power Pack is designed to safely lift, transport and empty wheelie bins of most sizes with a forklift.

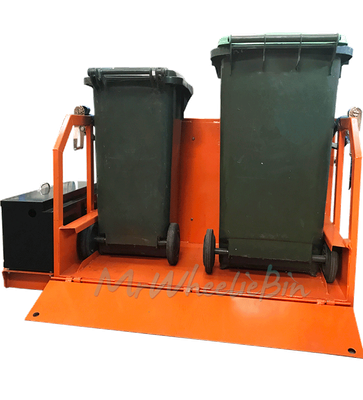

- Suits 80,120, 240 or 660 litre wheelie bins

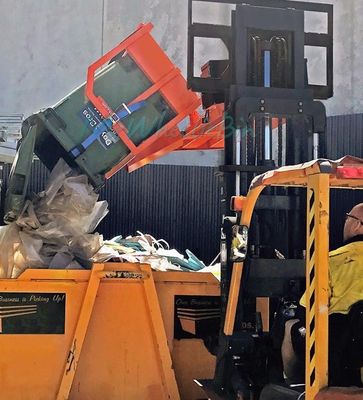

- Allows one or two wheelie bins to be rotated 120° for sideways emptying

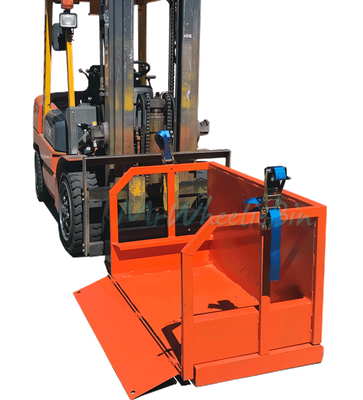

- Ramp fitted for wheeling bin into position
- Ratchet tensioners for simple and secure fastening of 660L bin to attachment
- Wheel guide used to position 80/120/240L bin in place
- Slip-on attachment and safety chain allows quick connection to a forklift
- Enamel paint finish
HYDRAULIC POWER PACK FEATURES
- Remotely controlled pendant (50m distance range) with spare pendant supplied
- 12-Volt DC Hydraulic Pump
- Battery & battery charger
- Robust cabinet box protects all components
- Quality hydraulic components
- Incorporated safety features include a two-button rotate function and emergency stop
- 180 AMP main fuse protects the full electrical circuit whilst a secondary 10AMP fuse adds further protection to the remote system and solenoid coils
► Click to expand Shipping Information
Pricing excludes freight.
Please contact us for a freight quote to your area.
These units are shipped ex Sydney.
